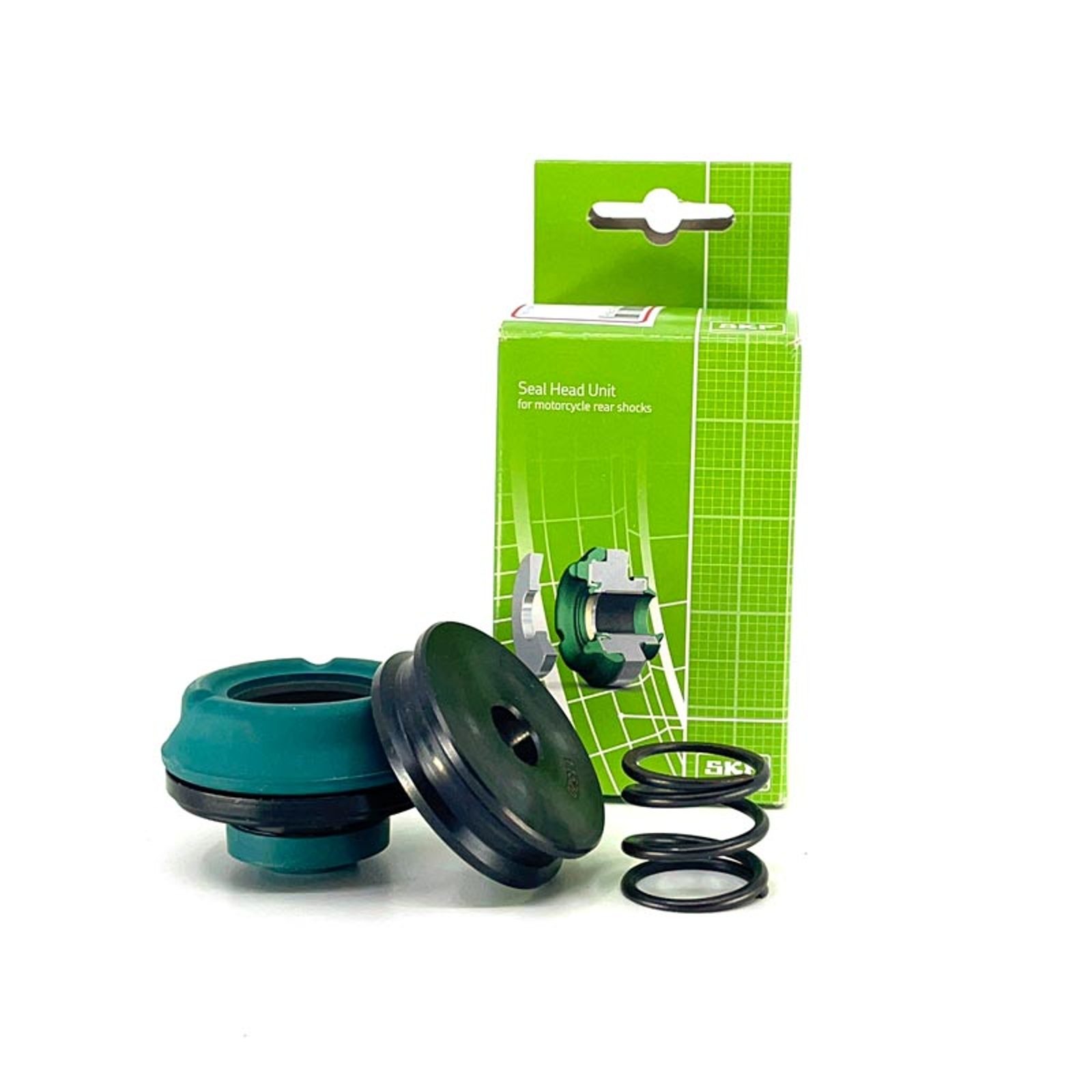

Shock seal head unit SKF SHOWA SH2-SHO1650 shaft 16mm piston 50 mm

The innovative SKF shock seal head unit for the rear shock absorber is designed to enhance suspension performance and increase durability over time. This product represents a unique and compact solution to maximize stroke and minimize the shock absorber length. The traditional design has been revolutionized by integrating multiple components into a much simpler kit, a one-part solution that facilitates logistic efforts as well.

The new static outer diameter seal design allows easier assembly and removal. The material used is a specially developed NBR compound suitable for temperatures of -40°C to +140°C, ensuring robust sealing over a wide temperature range.

Key Features

• Compact Design: Integrates multiple components into a simplified one-part solution to maximize stroke and minimize shock length.
• Easy Assembly: New static outer diameter seal design allows for straightforward installation and removal.
• High-Performance NBR Compound: Specially engineered material rated for temperatures from -40°C to +140°C ensuring robust sealing.
• Friction Reduction: Plastic back-up ring minimizes friction and wear under high operating pressures.
• Enhanced Rebound Control: Features an all-new rebound bumper and proprietary mating plate for smoother feedback and increased comfort.

Technical Specifications

• Product Type: Shock Seal Head Unit
• Manufacturer: SKF
• Sealing Material: Special NBR compound
• Temperature Range: -40°C to +140°C
• Kit Components: Seal head, back-up ring, rebound bumper, and mating plate
