Bikeplay GUARDIAN - TFT Display with dashcam MIDLAND C1636

Touchscreen display for complete smartphone mirroring, including front and rear cameras.

Download Kycam2 now.

Why is BikePlay Guardian useful? ​

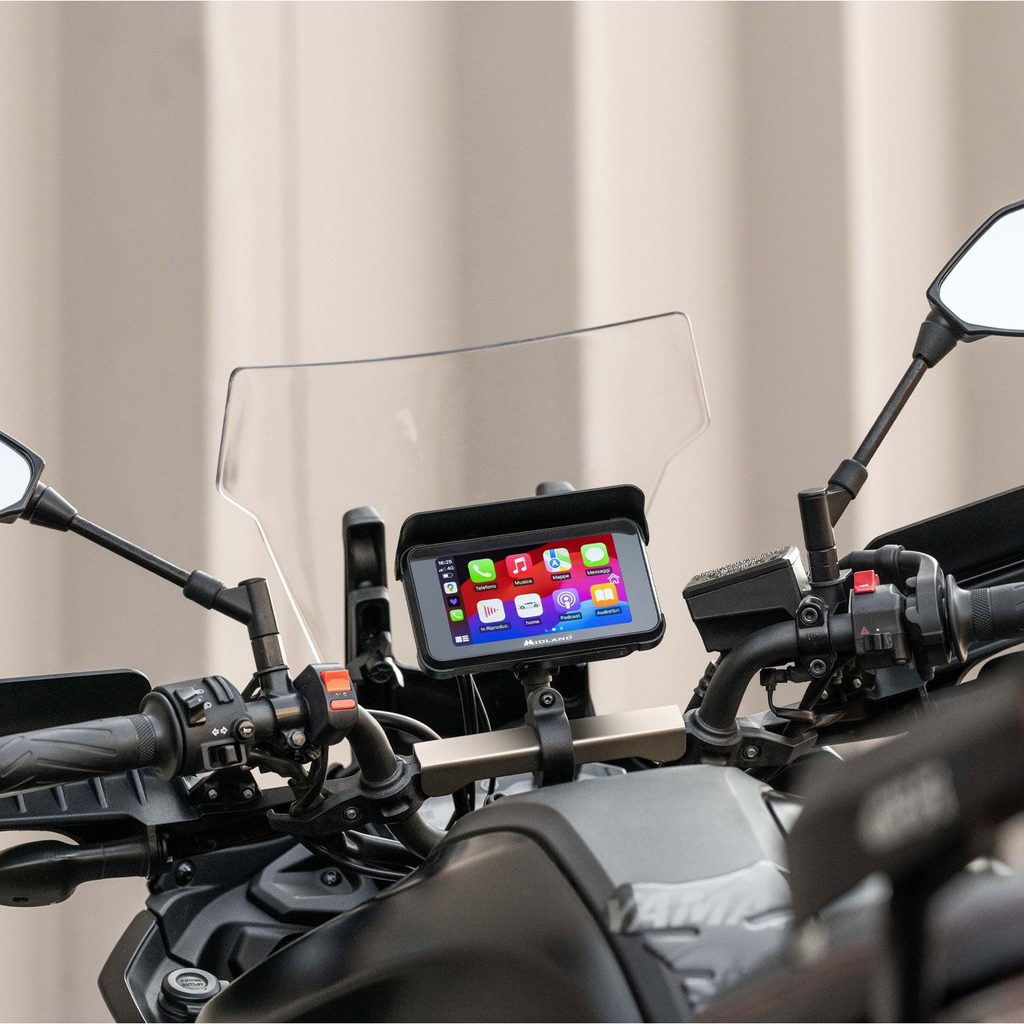

Safer Navigation: Use your smartphone's navigation apps by viewing directions directly on the touchscreen without having to look at your phone while driving. ​

Integration with Google: by interfacing with and Google on your smartphone, it performs voice commands to make calls, send messages, adjust the music without having to physically touch the screen.​

Access to multimedia content: you can listen to your favourite music, podcasts and radio apps directly through the main unit. You can use apps like Spotify, and more.  ​

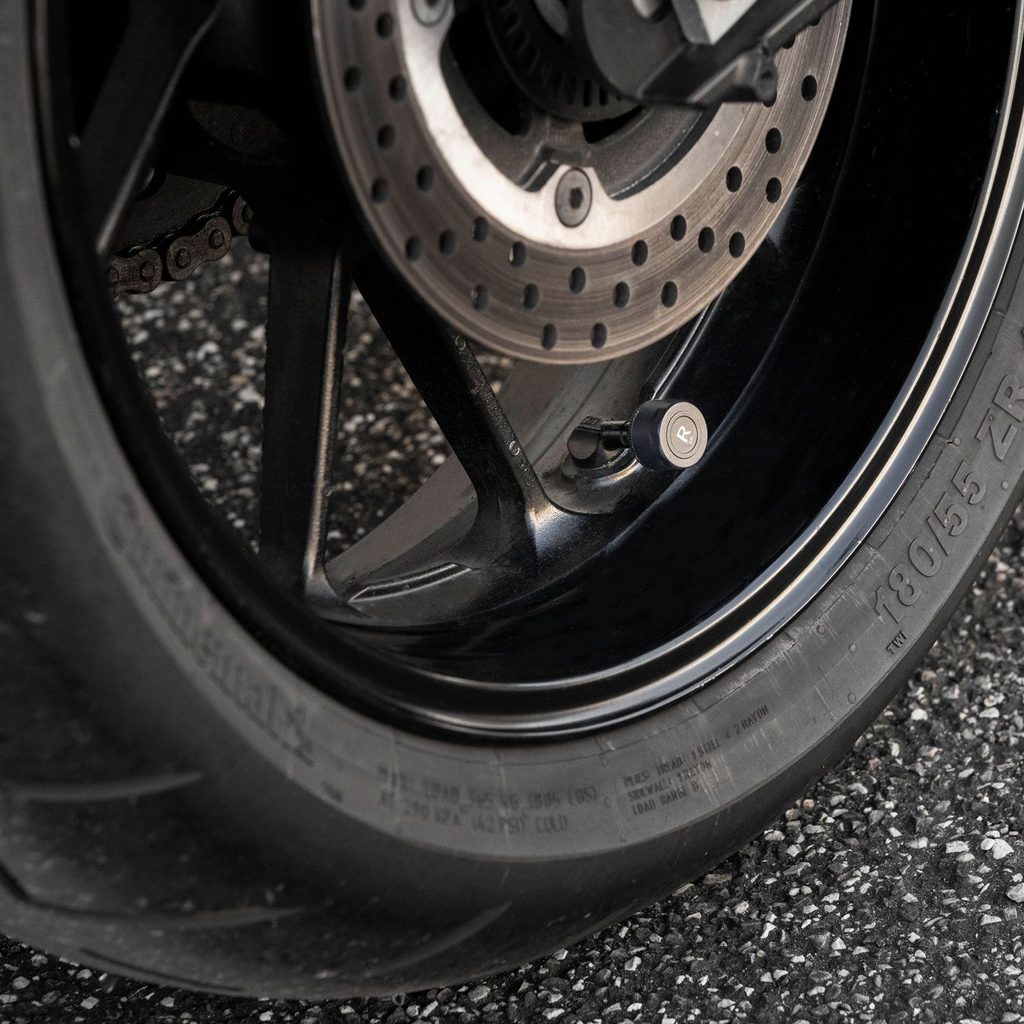

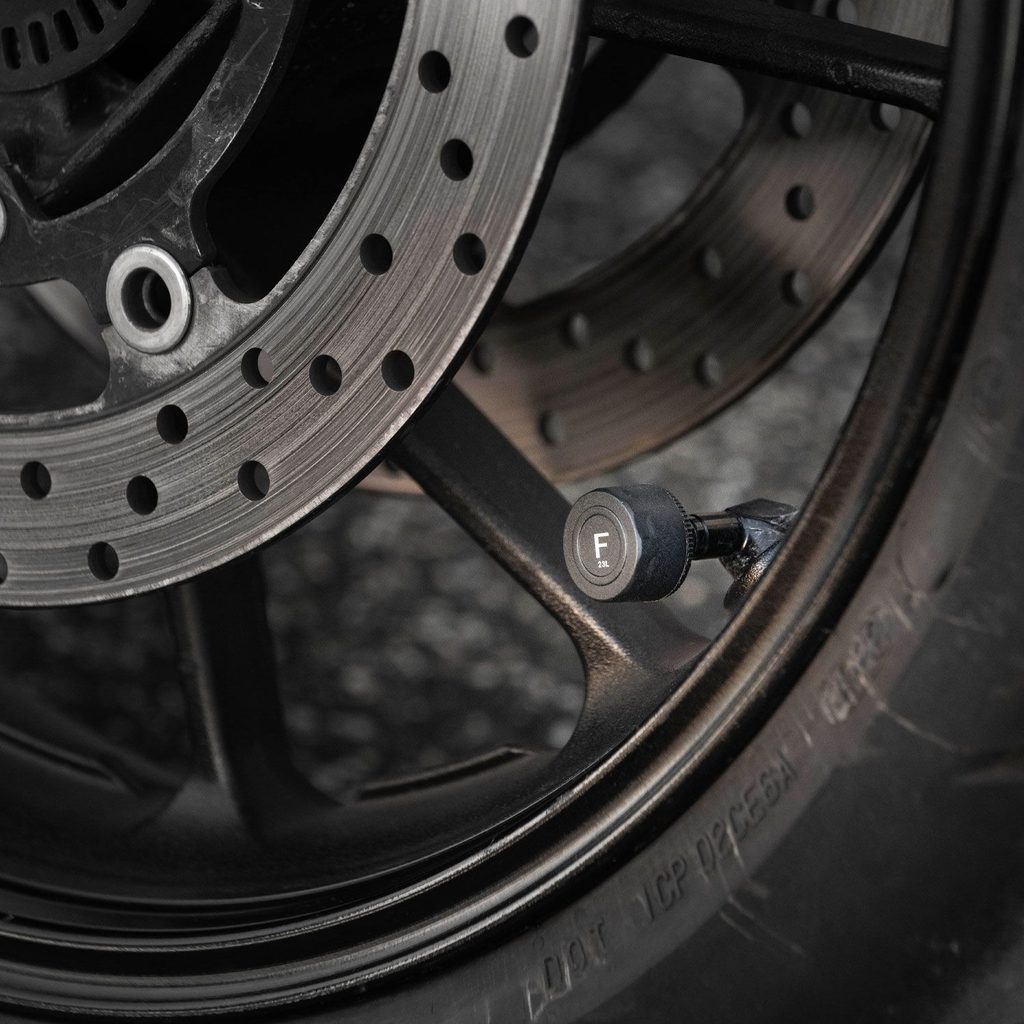

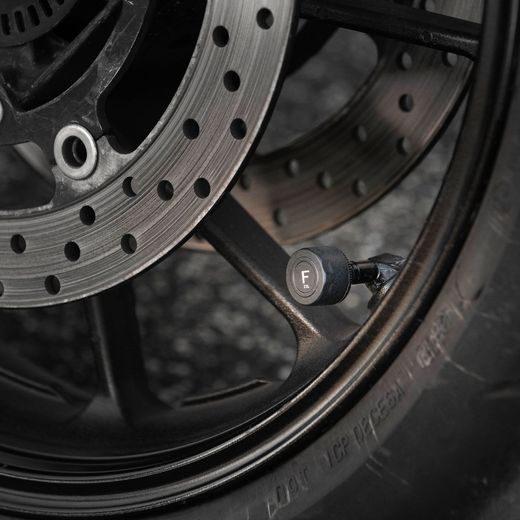

Tire Pressure Monitoring System: tire pressure sensors that constantly monitor tire pressure and the temperature. If the pressure drops below a preset level, the system warns the driver with a warning on the screen.​

Waterproof: guarantees high water protection and is not afraid of mud and bad weather.​

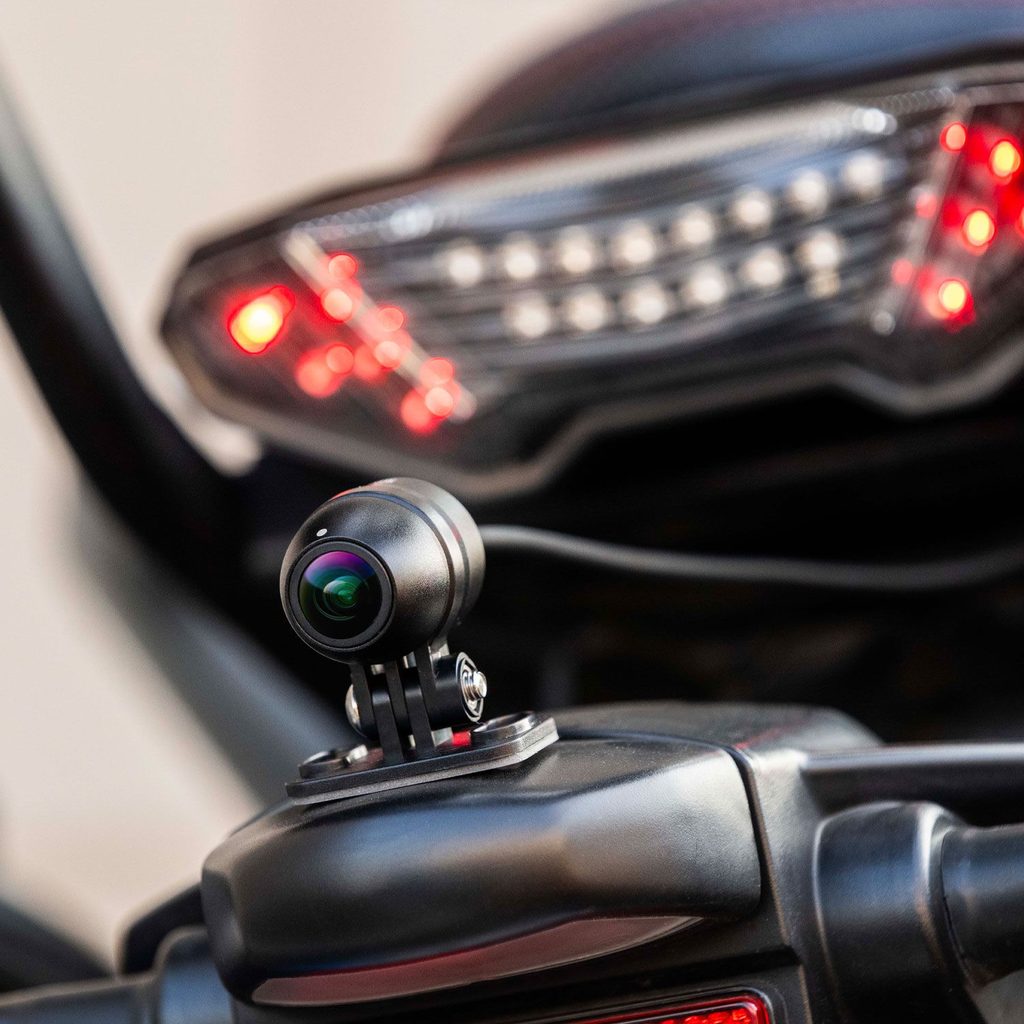

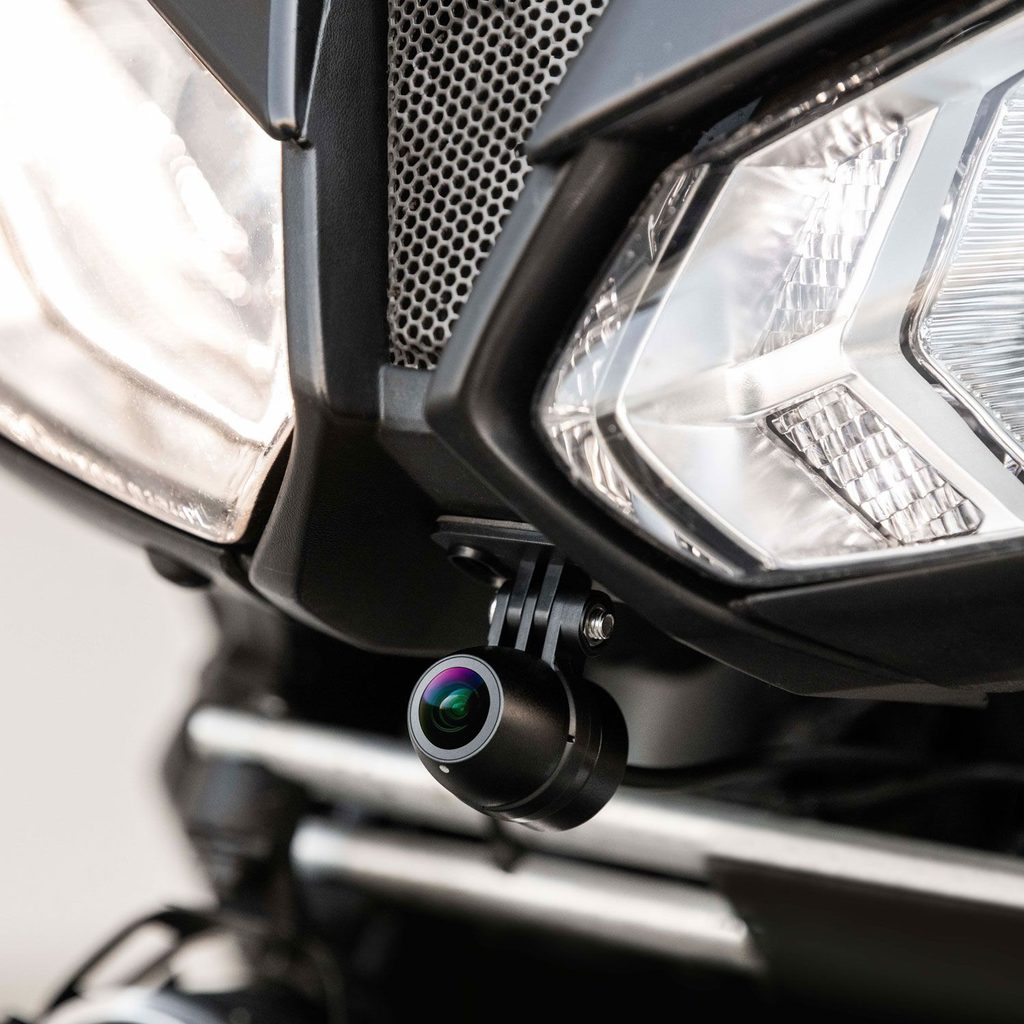

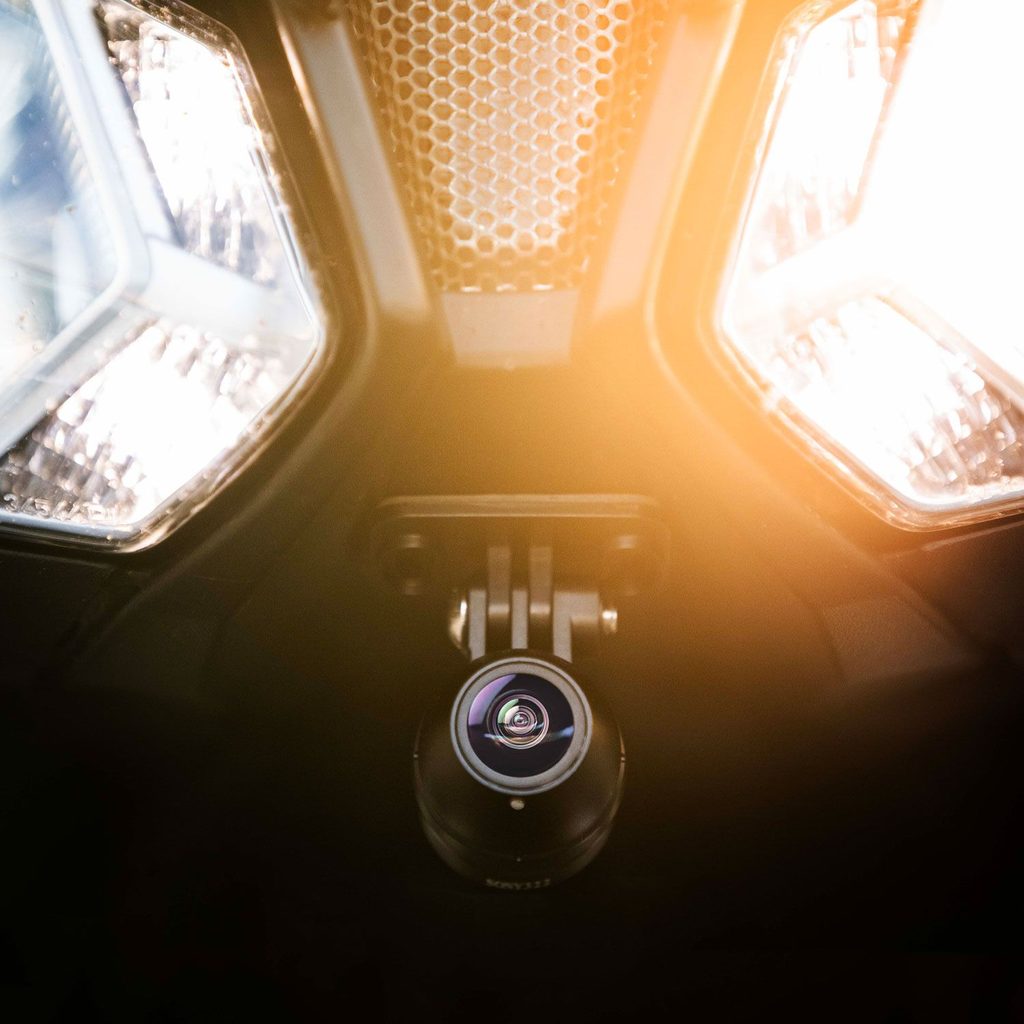

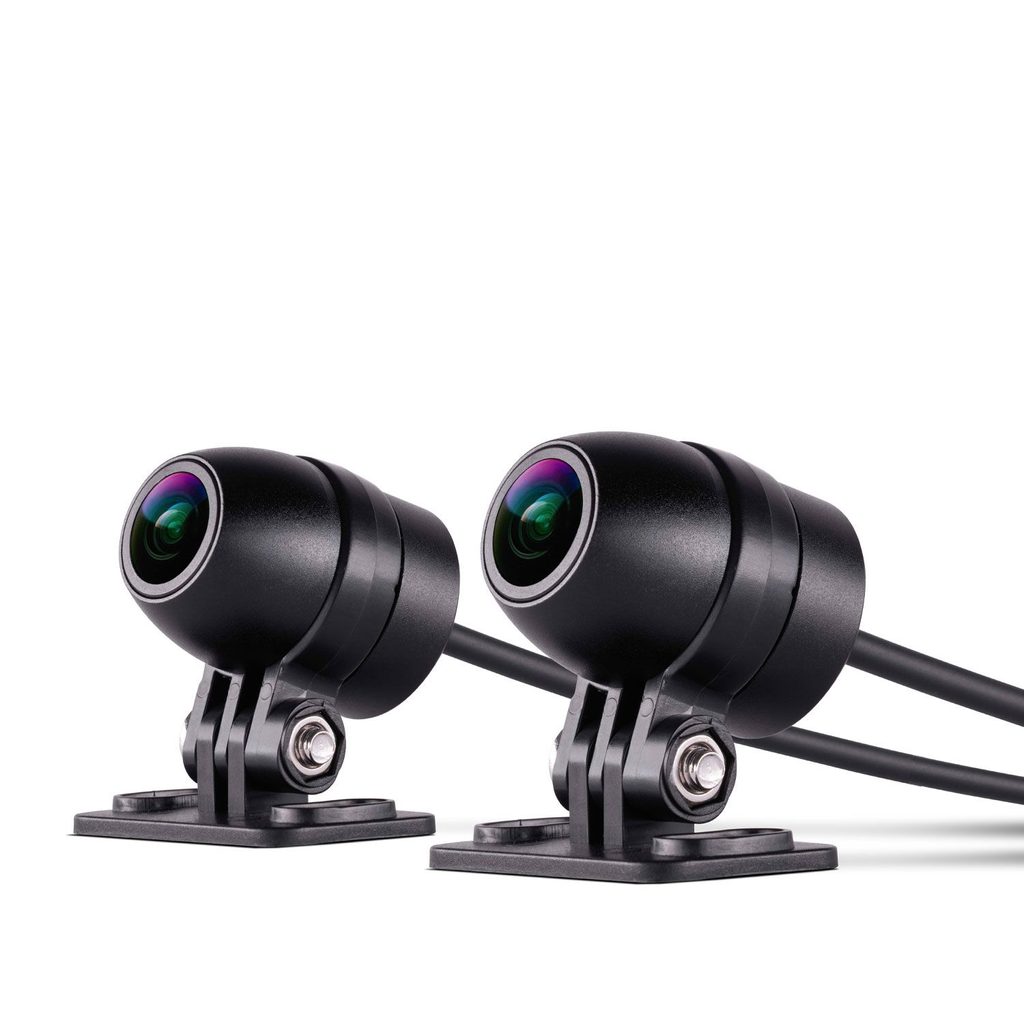

​BikePlay Guardian offers an advanced level of safety with dual front and rear cameras, allowing for continuous monitoring and recording (on a micro SD card, not included) what is happening around the motorbike, both frontally and on the back, managing its functions directly from the dedicated app. Thanks to the built-in GPS, it saves speed and position when recording your videos. ​

The QFHD resolution ensures clear recordings even in low light conditions. Furthermore, the anti-vibration algorithm makes images more stable. Thanks to the impact sensor, in the event of an accident, the event is protected from overwriting.  ​

​BikePlay Guardian is designed for perfect integration with all intercoms, in particular with the Midland family.​

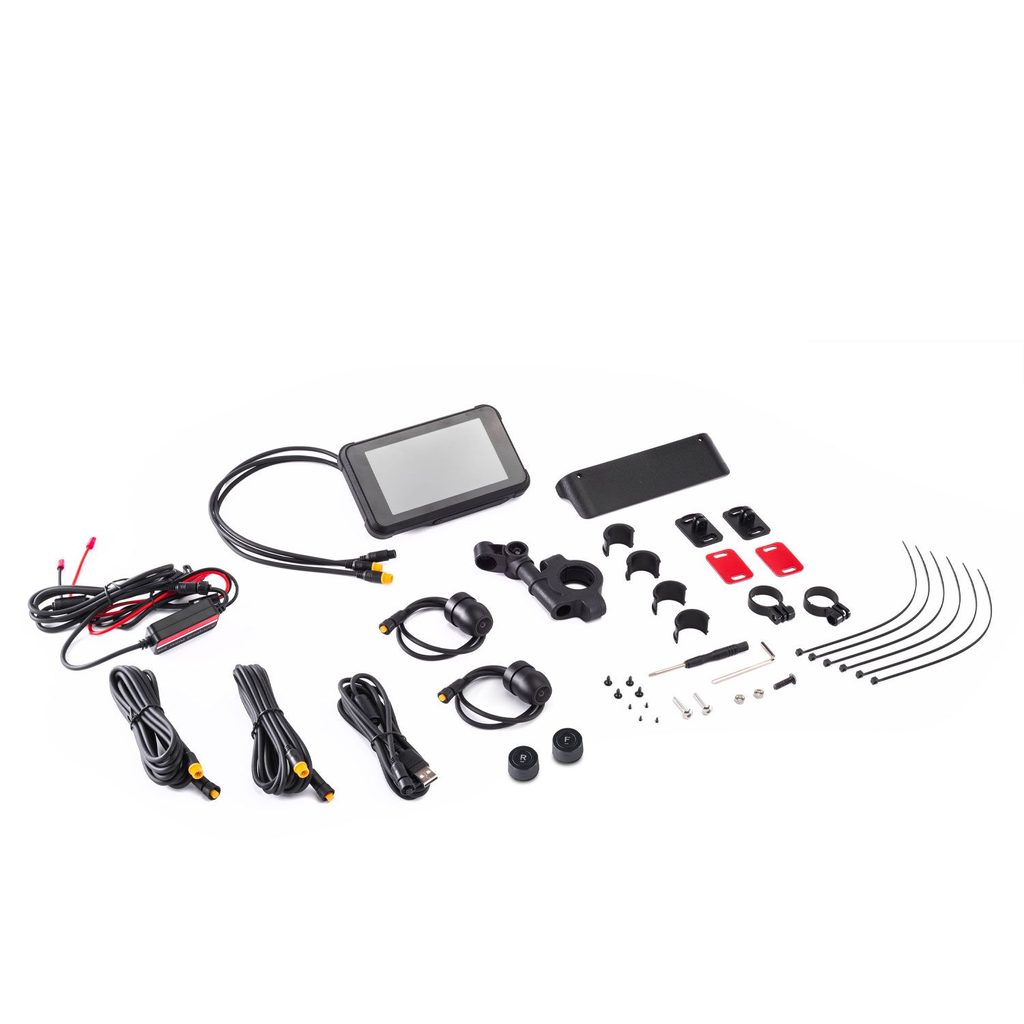

What's in the box

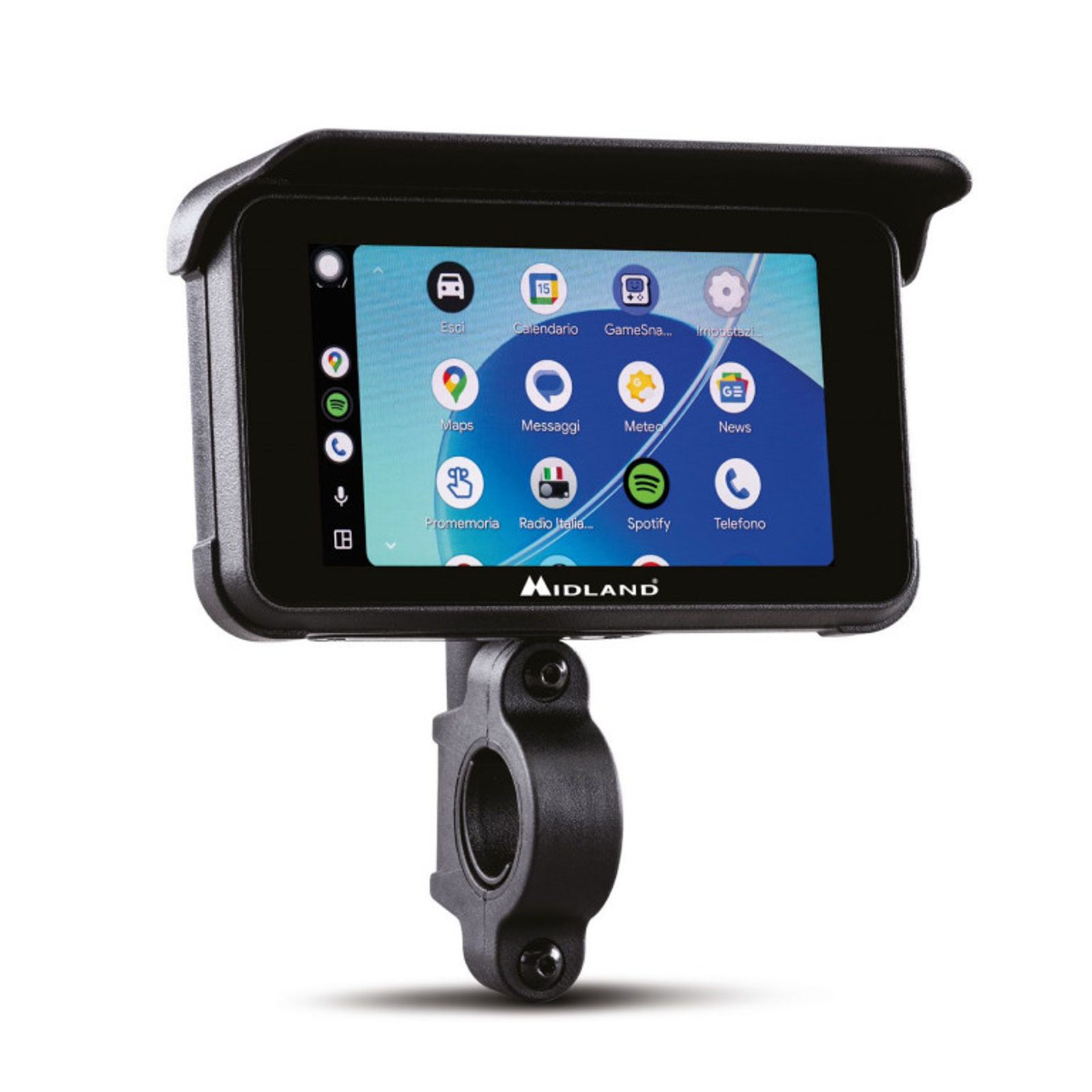

• 5" touchscreen monitor
• sun visor
• 2 wired 2k cameras
• 2 tire pressure sensors
• power cable
• 2 extension cables for cameras
• USB cable

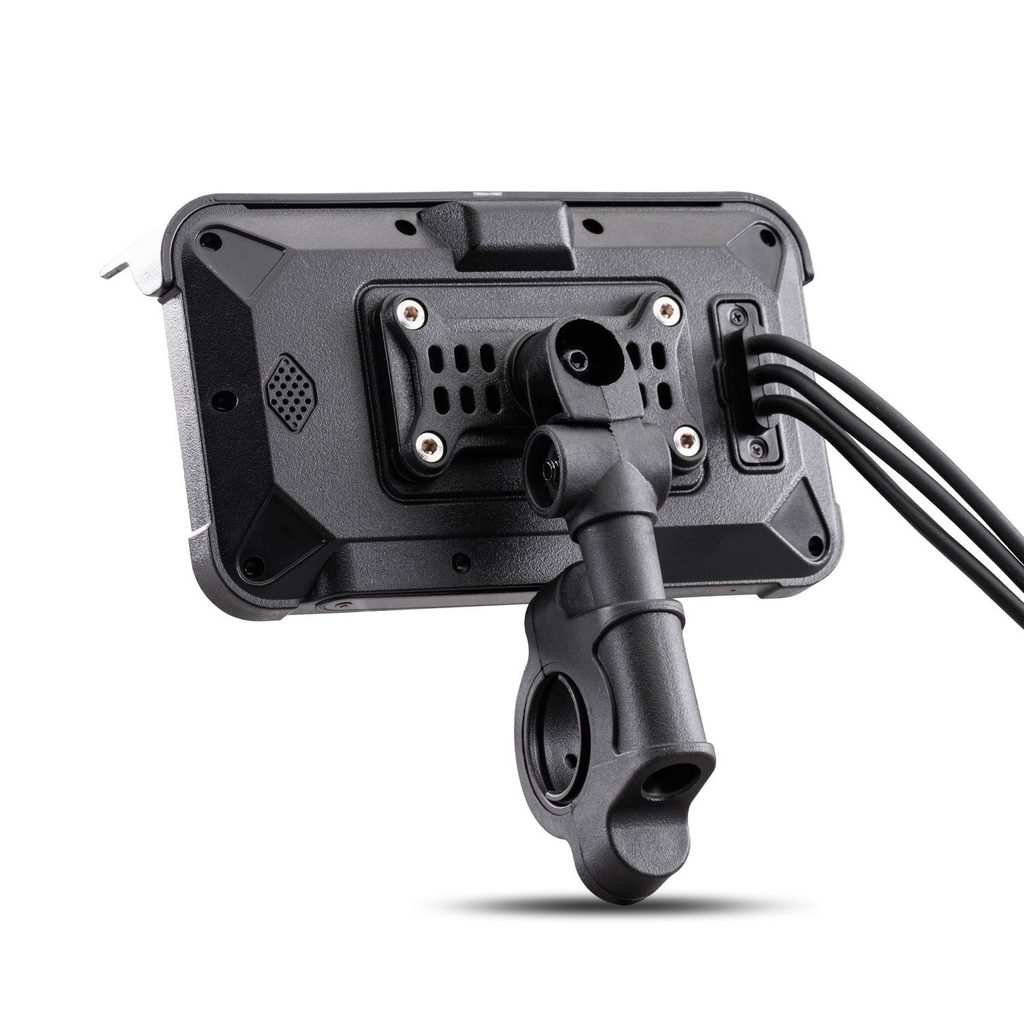

• handlebar mount and adapters for screen fixing

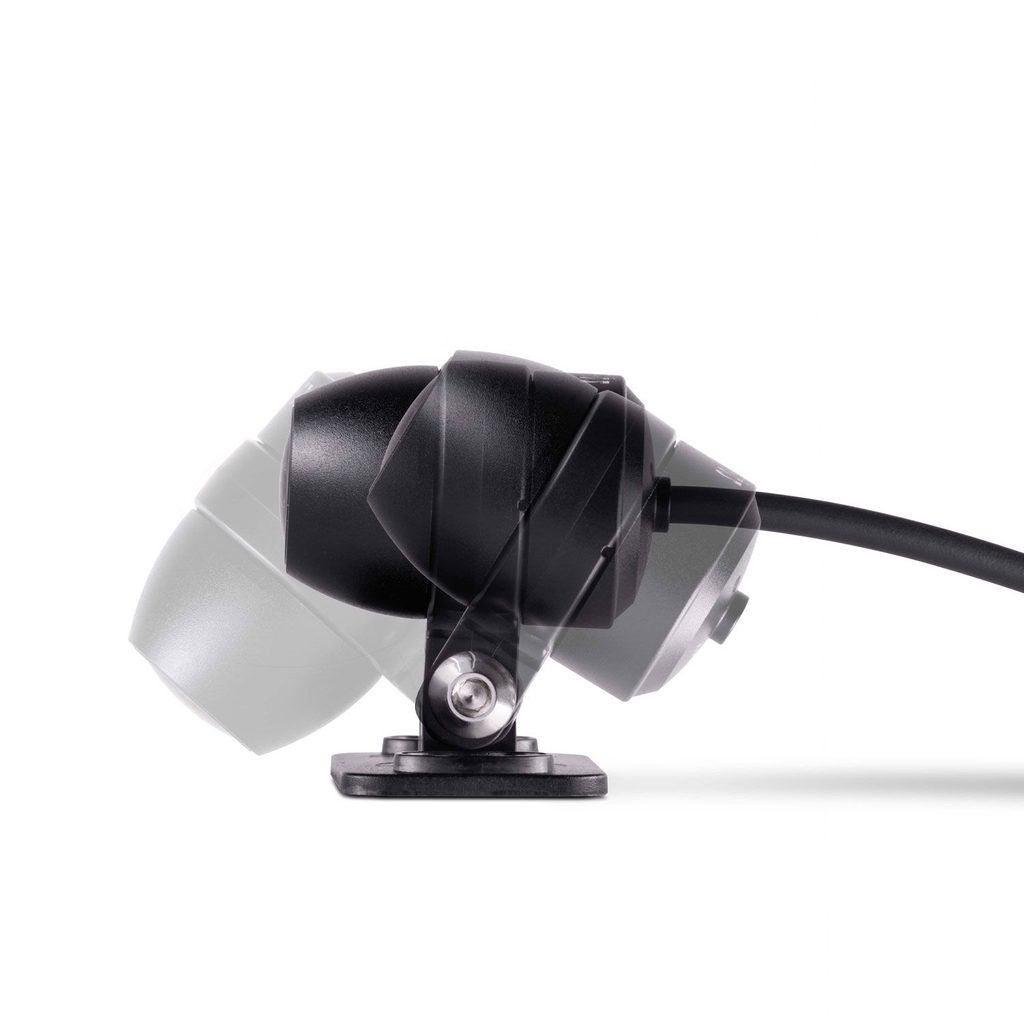

• camera mounting supports
• clamps
• mounting hardware
• Protective film already applied

Technical features

Monitor

5" IPS 854x480 pixels, 350 nits. Anti-glare screen.

Wifi

Wi-Fi with dedicated app on smartphone for camera settings ​

Sensor

Anti-glare screen, ​Night vision​

WaterProof

IP67

Resolution

QFHD dual camera (3840 x 2160 pixels)​ 2K

Dedicated APP

Kycam2

Easy Recording

Impact sensor, in the event of an accident, the event is protected from overwriting​

Stabilizer

Anti-vibration algorithm

Minimum system requirements

 Linux system, Capacitive touchscreen, ​Built-in Bluetooth​

Dimensions (WxHxD) mm

152x88x35

File type

H264

Memory capacity

32–256GB Class 10 U3

Pictures

Yes

Fastening system

Optional handlebar / RAM mount (C1666)

External socket

USB-C for data

Power supply

12V (battery) or 5V 1A
